Mobile excavator

Gunter grossmann G70X

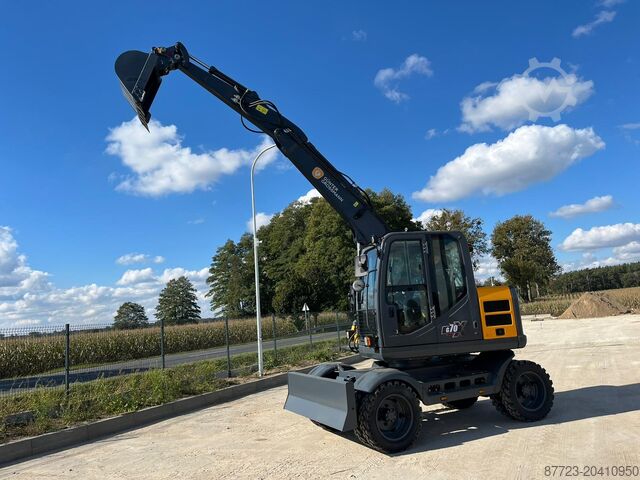

Wheeled Excavator G70X
Wheeled Excavator
The G70X wheeled excavator is a powerful, precise, and highly mobile machine, ideal for all types of construction work. Powered by a Euro 5 Yuchai F3065-S580 engine delivering 48 kW (65 hp), the G70X offers excellent performance, reliability, and low emissions. Advanced hydraulic technology and efficient operational parameters make this excavator indispensable on any professional job site.

Engine and Hydraulic Efficiency

Equipped with the Euro 5 Yuchai F3065-S580 engine, the G70X delivers 48 kW (65 hp) and complies with stringent Euro 5 emission standards for environmental friendliness. The engine provides a balance between high power and fuel efficiency, enabling prolonged operation without frequent refueling. The hydraulic oil flow rate of 85 L/min and a main relief valve pressure of 24.5 MPa ensure powerful work performance for rapid, precise movements and high digging force.

Excellent Work Parameters
Bwjdpfxjxr Rwhj Aclsw

The G70X offers a wide operational range, with a maximum digging reach of 6,535 mm, minimizing the need for frequent repositioning. It achieves a maximum digging depth of 3,530 mm, digging height of 6,715 mm, and dumping height of 4,905 mm, making it suitable for deep excavation and efficient material handling at height.

Speed and Maneuverability

Engineered for high mobility, the G70X attains a maximum travel speed of 30 km/h for rapid transit on the job site. The platform rotation speed is 8.5 rpm, enabling precise control in confined spaces. With a minimum front turning radius of 2,275 mm and a rear turning radius of 1,665 mm, the excavator offers excellent maneuverability, ideal for work in narrow or challenging terrains.

Technical Data
Weight: 6,530 kg
Engine: Euro 5 Yuchai F3065-S580
Engine power: 48 kW (65 hp)
Oil flow rate: 85 L/min
Main relief valve pressure: 24.5 MPa
Maximum digging force: 35 kN
Maximum travel speed: 30 km/h
Platform rotation speed: 8.5 rpm
Fuel tank capacity: 135 L
Hydraulic oil tank capacity: 120 L
Maximum digging reach: 6,535 mm
Maximum digging depth: 3,530 mm
Maximum digging height: 6,715 mm
Maximum dumping height: 4,905 mm
Minimum front turning radius: 2,275 mm
Minimum rear turning radius: 1,665 mm
Overall length: 5,950 mm
Overall width: 2,010 mm
Overall height: 2,800 mm
Wheelbase: 2,410 mm
Tire size: 195/85-20
Ground clearance: 430 mm
Blade width: 1,980 mm
Blade height: 390 mm
Bucket width: 700 mm
Boom length: 3,400 mm
