Laser marking

Markierheld Exklusiv XL Mod. 25 made in Germany

Marking hero EXKLUSIV XL Industry 4.0 - Model 2025

Metal - plastics and much more!
- EZCAD 3 (real 64bit card) with up to 4 axes
- Windows Professional 64bit suitable
- Professional MOPA fibre laser source JPT with 20 Watt power and up to 600 kHz
(optionally with variable pulse width and up to 2000 kHz for colour marking)

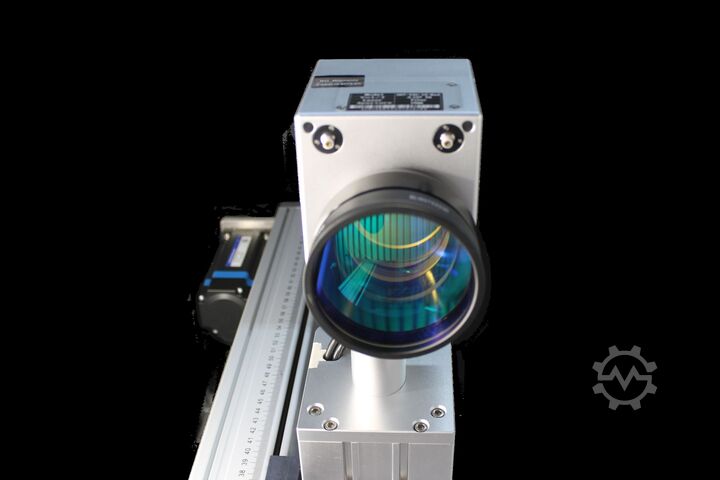

- ‘DigiScan Eco 10’ scanner unit for detailed and precise results
- T-slot plate from Isel for easy attachment and positioning of your workpiece

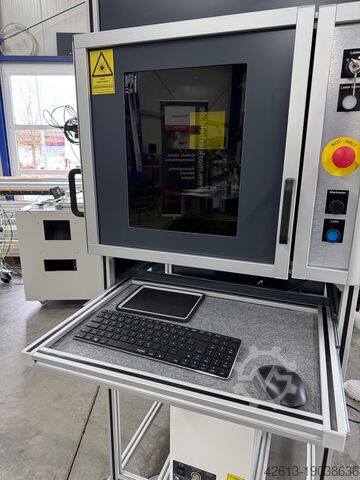

- Sliding door at the front with large viewing window and certified laser safety screen made in Germany incl. monitoring
-> Door opening 450 mm
- Side sliding door on the left incl. monitoring for long parts -> door opening 400 mm
- Clear control panel with Siemens buttons
- Scan area approx. 100 x 100 mm (optional 150/200/300 mm)
- Motorised height adjustment with focus finder
- Stand housing made of aluminium profiles with two man. Doors for easy, user-friendly and safe marking
Laser class 1
- Substructure of the stand housing with Rittal control cabinet and integrated extraction point
- LED workspace lighting made in Germany
- High-performance MiniPC with 32 GB
- 21’ TFT touch screen for fatigue-free working
- Professional marking software in German language
- Barcode and QR code support
- Serial number function
- Batch scanning from Excel file, network or database!
- Laser parameter finder via matrix over 2 parameters (e.g. frequency to speed, frequency to power)
- TCP IP connectivity. Various commands can now be transmitted to the software via TCP protocol. This enables the simple integration of external components such as camera position detection etc.
Bwsdpfewgaqpsx Akcow
- Industry 4.0 The status can be processed at any time via the TCP/IP protocol
- Inputs and outputs for automation
- 3D preview for rotary axis machining
- Performance increase of up to 50% thanks to 64-bit technology
- Improved stability
- Optional up to 4 axis control WITHOUT switching via PLUGins
- Optional DEEP engraving (slicer software with control of the Z axis)
- New algorithms increase the engraving speed for hatching
- Completely redesigned Galvo generation (Eco, Hi-Speed & 3D) with 2-fold laser pointer for visual checking of the focus position
- Connection option for external suction
- Software suitable for Windows 10
- USB cable for connecting to the computer
- Operating instructions and operating software in german and english

Among other things, we offer the following options:
=ᐳ IPG or SPI fibre laser sources in various powers
=Scanlab equipment
=Suitable extraction systems
=ᐳ Automation for placement, conveyor belts and much more!
=ᐳ 3D marking function
=ᐳ Automatic focus adjustment via special laser sensor

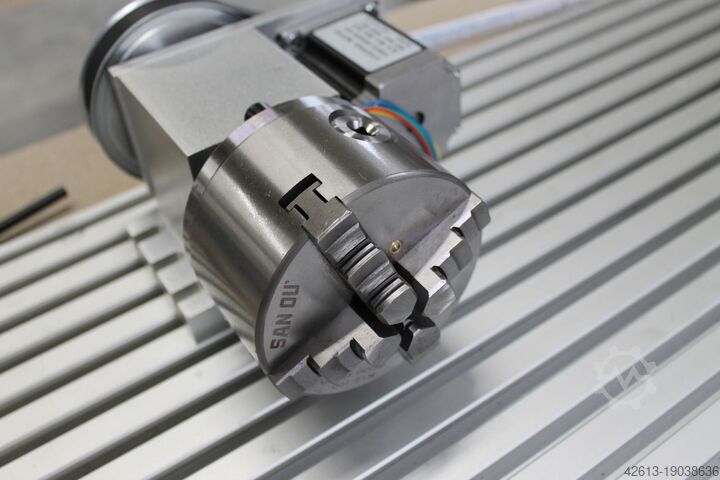

=ᐳ Rotary unit in various versions
=ᐳ Motorised slides in X and Y
=ᐳ Interlock system for labelling WITHOUT protective housing, but only with
personal protective equipment for bulky parts

incl. training in Schweinfurt!

Our engraving lasers are manufactured at our factory in Schweinfurt! Individual requests are therefore possible at any time! =ᐳ Made in Schweinfurt!

Images may contain options!

We are your partner for laser markers. Whether manual or automatic laser labelling system. We will be happy to make you an offer.
