Minidumper

SCHORR Holzrungendumper RR500DHKAHR

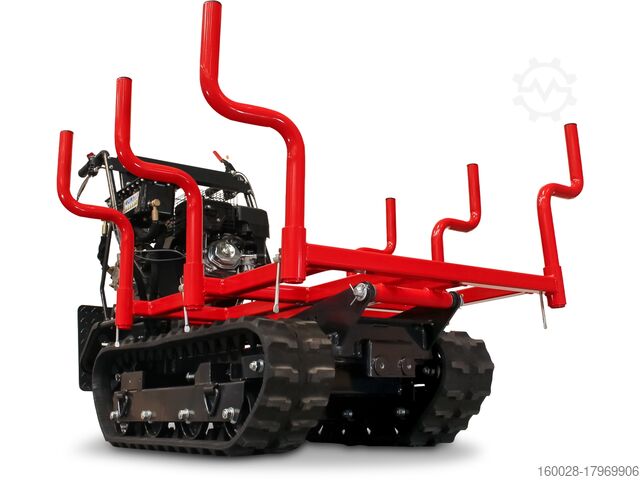

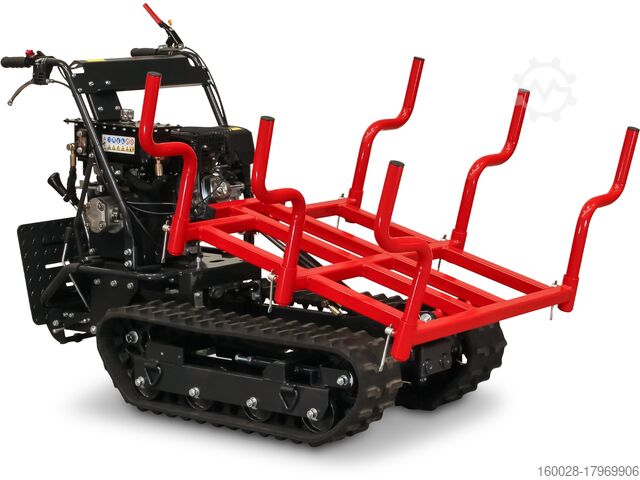

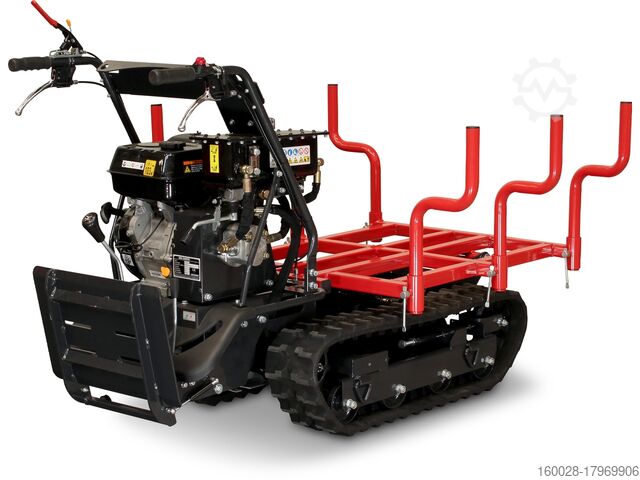

The SCHORR RR500DHKAHR track dumper is specially designed for transporting heavy and bulky materials such as wood or pipes. With a payload of 500 kg and a powerful 9.2 hp single-cylinder 4-stroke petrol engine, it handles demanding tasks with ease. The robust transmission with 6 forward and 2 reverse gears ensures precise control.

The powerful chain drive ensures that the dumper can also work confidently on difficult terrain, on inclines and over kerbs. The rubber tracks ensure a secure footing and offer stability on a wide variety of surfaces - from muddy fields to gravel paths.

The hydraulic tipping drive of the RR500DHKAHR also offers clear advantages in the version with wooden stanchions. Even heavily loaded loads such as logs or long materials can be secured and transported effortlessly. The robust design ensures stability and a secure hold of the load, even on uneven terrain.

The large hydraulic oil tank with integrated oil filter contributes to the dumper's long service life and minimizes maintenance requirements. Thanks to the powerful hydraulic system, loading and unloading is efficient and easy to handle, saving both time and physical effort. Ideal for use in the forestry sector and on construction sites, the RR500DHKAHR meets the highest standards of performance and reliability.

SCHORR track dumper RR500DHKAHR - Discover the advantages:
-- 9.2 HP four-stroke engine
-- Self-propelled & powerful track drive
-- 500kg payload
-- Large and stable wooden stanchion with optimum tipping angle for efficient unloading
-- Folding passenger platform as standard
-- 6+2 gears

Technical data:
Manufacturer (abbreviation): SCHORR
Type designation of the manufacturer: RR500
Model: DHKAHR
Load capacity: 500kg
Tilt drive: Hydraulic (stepless)
Travel drive: Chain
Weight: 328kg

Drive system
Engine: Air-cooled 1 cylinder four-stroke engine (OHV)
Starter: Reversing starter
Power: 9,2PS
Gearbox: 6 forward gears / 2 reverse gears

Speed: forward gear
Forward gear: max. 8km/h
Reverse gear: max. 5

Liquids
Fuel tank capacity: 6L (unleaded petrol)
Hydraulic oil tank capacity: 3L (ISO VG 32)
Transmission oil capacity: 1.5L (SAE 80W-90)
Engine oil tank capacity: 0.9L (15W-40)
Max. Hydraulic oil flow rate: 9L/min

Basic dimensions
Overall length of platform (folded): 1720mm
Overall length of platform (unfolded): 1920mm
Total width of stanchion (unfolded): 1250mm
Total width of stanchion (folded in): 865mm
Total length stanchion / platform: 965mm
Inner width of stanchions, top: 1175mm
Stanchion inside width, bottom: 775mm
Inner distance, stanchion - stanchion: 370mm
Total height (handle - floor): 1050mm
Overall height (stanchion - floor): 900mm
Total height stanchion: 460mm
Stanchion dimensions (outer dimensions) L x W x H: 965mm x 1250mm x 460mm
Stake thickness: 40mmDrive chain dimensions: 180 x 60 x 38mm
Ground clearance: 120mm

*Further technical data available on request.
Bwodpfx Acjvfp Dwj Eow

The RR500DHKAHR tracked dumper is the perfect solution for transporting materials such as wood, pipes or bulk goods, especially on rough terrain. Its compact design and track drive enable maximum maneuverability, even in areas that are difficult to access.
