Precision lathe

Weiler Ergodor

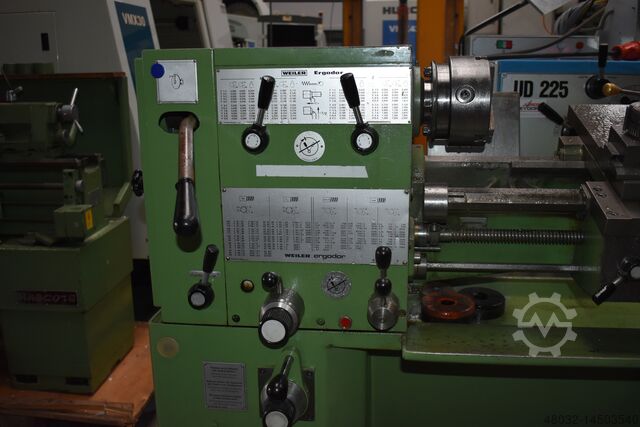

Lathe WEILER
Precision center lathe in ergonomic design
The Weiler Ergodor is the first German ergonomically designed lathe. It creates a more humane workplace and prevents health problems. The key feature is that the employee can operate this lathe while standing or sitting.

Technical data
Center width 470 mm
Turning length 430 mm
Center height 145 mm
Rotation Ø over cross slide 160 mm
Rotation Ø over bed 300 mm
Spindle head, short taper flange
Bayonet mounting DIN 55022 size 5 or Camlock clamping D 1-ASA-4
Spindle bore 36 mm
DIN 55022 size 5 Spindle inner taper
Spindle speeds
Speeds 30 - 3550 rpm S
Speeds 15 - 3550 rpm Brake motor 3 kW Brake motor 1.5/3 kW
Face slide travel 150 mm
Travel of the top slide 100 mm
Feed rates and thread pitches on the gearbox switchable steps 30 Section 2 1.5/3 kW 38
Gear ratio in headstock 3 20
Long feeds 150 mm via change gears 100 mm via toothed belt
Codpfx Asvgqu Hsnujhd
Face feeds = 1/2 Longitudinal feed values
Metric pitches 0.2 - 12 mm
Module pitches 0.1 - 4
Dimensions 1450 x 640 x 1500 mm
Dimensions 1450 x 640 x 1500 mm
Net weight 1000 kg
Acceptance according to toolmaker's accuracy DIN 8605 20
Built according to the rules of occupational safety, official test no. A. EM 11 1545/80.
Encombrement 1450 x 640 x 1500 mm
